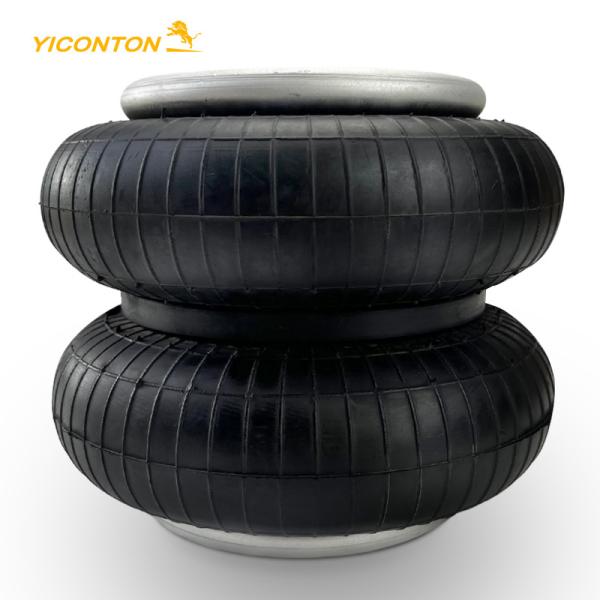

W01-M58-7894 Double convoluted Air spring truck Contitech FD200-19P041

Specifications and Detail Technical Parameters

❶Nut/blind nut

Top plate screw (nut) teeth: 2XM10X1.5
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2XM10X1.5
The screw center distance of the bottom cover plate: 89 mm

❷Air hole/air inlet/air fittings
Air hole/air inlet: G1 / 4
Screw center distance between air hole and nut: 44.5 mm

❸Cover plate
Top plate diameter: 160 mm
Diameter of the bottom cover: 160 mm

Bell rubber bellows
Maximum diameter of rubber bellows: 251 mm
Natural diameter of rubber bellows: 224 mm
Working stroke: minimum 75 mm to maximum 260 mm
Maximum height: 274 mm
Minimum height: 95mm
Stroke height: 179mm

❺Bumper block/bumper block
No bumper block

❻Belt loop/Belt loop
There is a belt hoop: a belt hoop

What is the purpose of an air spring?

An air spring is basically a column of air confined within a rubber-and-fabric container shaped like a bellows. The spring action results from the compression and expansion of the air. When used on road vehicles, air springs can keep the vehicle at a constant standing height regardless of load.

Yiconton Convoluted Air Spring Benefits

Require little to no maintenance
Pressure tested for quality assurance
Increase towing and hauling capabilities
Replace worn out oem air bags
Increase life of other suspension components

Product picture

Over the last 20 years yitao has developed into a leading international designer and manufacturer of air spring and air suspension products. yitao started in a small rubber workshop, has opened the way to be a prestigious brand by spreading throughout 6 continents today. During this 20 years experience, we have only focused on our work on which we have specialized in air spring production and services.

Nowadays, Yitao has been exporting to more than 100 countries through 6 continents. It can operate flawlessly in any road and climate conditions (-40/+70° degrees). Yitao has the widest product range in the world with more than 1000 different types of air springs , hundreds types of air suspension shock and air compressors which are produced. Yitao can meet any demand and exceed all expectations with its extensive experience, high technology, skilled workforce and commitment to its partners.

Guangdong Yiconton Airspring Co., Ltd. (Yiconton), founded in January 2016, is a wholly-owned subsidiary of Guangzhou Yitao Qianchao Vibration Control Technology Co., Ltd. Yiconton is the R & D and production base of Yitao Qianchao. Yiconton adopts the most cutting-edge manufacturing, and testing machines in the air spring industry. Yiconton is a smart factory, thanks to intellectual automatic system and automatic production line.
