Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

Guangdong Yiconton Air Spring Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 from wholesalers

    Buy cheap Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 from wholesalers
    • Buy cheap Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 from wholesalers
    • Buy cheap Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 from wholesalers

    Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

    Ask Lasest Price
    Brand Name : Yiconton
    Model Number : 2B 5251
    Certification : IATF16949
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 500pieces/Month
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

    Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499

    Steel And Rubber truck air spring Firestone W01-358-6935 Contitech FD200-19499


    Cross references
    Automann
    SP2B12R-6935
    Firestone No.
    W01-358-6935
    Firestone No.
    W01-358-6856
    Firestone Style
    20
    FleetPride
    AS6935
    Goodyear
    2B9-201
    Goodyear Flex No.
    578923202
    Road Choice
    RC62C19 6935
    Taurus
    6325
    Triangle
    AS-4499
    TRP
    AS69350
    Contitech
    FD200-19499
    Original parts
    R&S Truck
    1027505
    Granning
    4848
    Loadguard
    SC2010
    Navistar/Fleetrite
    554784C1
    Hendrickson
    S-14318
    Hendrickson
    3318
    Sauer
    P50-733A
    Suspensions, Inc.
    200042
    Granning
    702932-01
    Meritor
    201548
    Navistar/Fleetrite
    2B9-491
    Freightliner
    16-14318-000
    Taurus
    AS218-6902
    Ridewell
    S1728C
    Technical parameters

    Nut / Blind Nut


    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 89 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Bottom Cover Plate : 89 mm


    Gas Hole / Air inlet / Air Fitting


    Gas Hole / Air inlet : 1/4-18NPTF

    Screw Center Distance Between Gas Hole and Nut : 44.5 mm


    Cover Plate


    Top Cover Plate Diameter: 160 mm

    Bottom Cover Plate Diameter: 160 mm


    Rubber Bellows


    Rubber Bellows MAX Diameter: 251 mm

    Rubber Bellows Natural Diameter : 224 mm

    The Working Stroke : MIN 75 mm to MAX 260 mm

    Maximum Height : 274 mm

    Minimum Height :95mm

    Stroke Height : 179mm


    Features


    * Features with heavy duty double convoluted crimped design which allows safe and comfortable load capacity up to 2500 pounds.
    * Built to strict quality control standards.
    * Designed for Comfort Suspension.
    * Bring better handling and ride comfort.

    Benefits


    Require little to no maintenance
    Pressure tested for quality assurance
    Increase towing and hauling capabilities
    Replace worn out oem air bags
    Increase life of other suspension components
    Manufacturer: Firestone
    Double Convoluted Air Bag


    About Yiconton


    We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

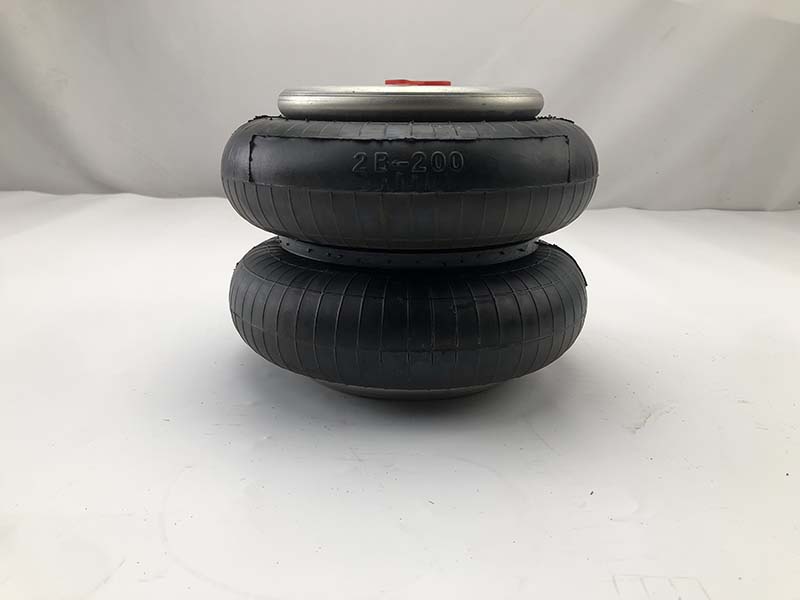

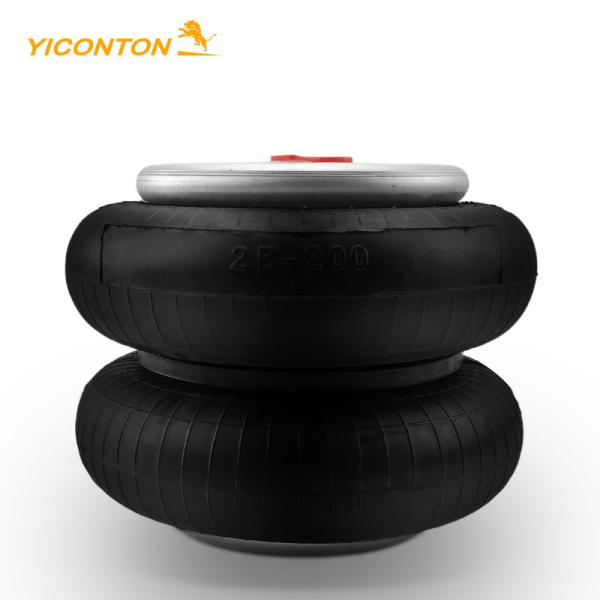

    Product picture

    Quality Steel And Rubber Truck Air Spring Firestone W01-358-6935 Contitech FD200-19499 for sale
