    Double Convoluted Air Bags Truck Air Spring W01-358-7025 W013587025

    Ask Lasest Price
    Brand Name : Yiconton
    Model Number : 2B 5202
    Certification : IATF16949
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 500pieces/Month
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

    Double Convoluted Air Bags Truck Air Spring W01-358-7025 W013587025

    double convoluted air bags Truck air spring W01-358-7025 W013587025

    Cross references
    Firestone
    W01-358-7025 W013587025 W01 358 7025

    Specifications and Detail Technical Parameters


    Nut / Blind Nut

    Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    Screw Center Distance of Top Cover Plate : 44 mm

    Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

    In Middle of Bottom Cover Plate

    Gas Hole / Air inlet / Air Fitting

    Gas Hole / Air inlet :1/4-18NPTF

    Cover Plate

    Top Cover Plate Diameter (Width): 111 mm

    Bottom Cover Plate Diameter (Width): 111 mm

    Rubber Bellows

    Rubber Bellows Natural Diameter : 146mm

    Rubber Bellows MAX Diameter : 165 mm

    Installation Space Diameter : 180 mm

    Rubber Bellows Natural Height : 212 mm

    Stroke:65mm-175mm

    Bumper block / Buffer block

    Without Bumper Block

    Girdle Hoop / Girdle Ring

    With Girdle Hoop :One Pieces of Girdle Hoop


    About Yitconton


    We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.

    Yiconton Advantage
    The rubber is of high quality.
    The plate is the steel,coated Zn,high capacity and anti-corrosion.
    All air spring types can be used at a working temperature between -40°C and 70°
    We also have our strict series quality control.
    OEM Manufacturing welcome: Product
    Sample order is available.
    We will reply you for your inquiry in 24 hours.
    After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

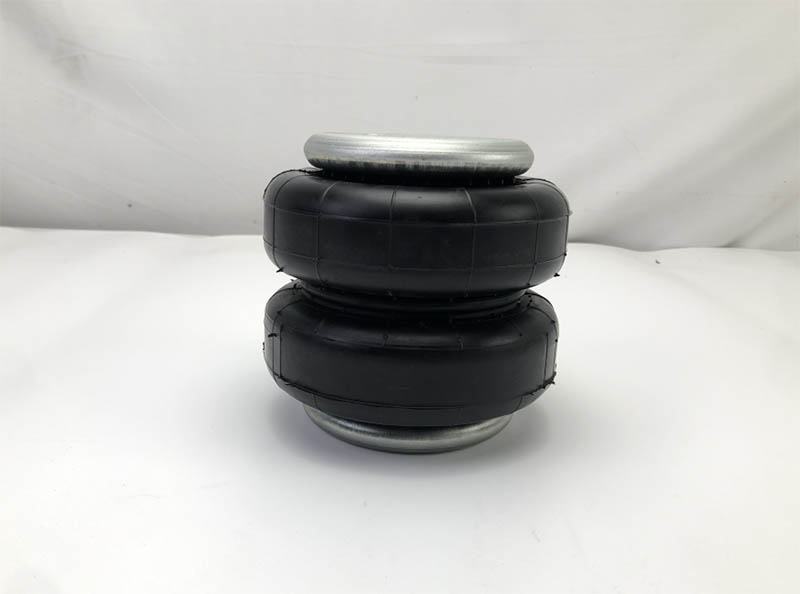

    Product picture
