    Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094

    Ask Lasest Price
    Brand Name : Yiconton
    Model Number : 1B 5360
    Certification : IATF16949
    Price : Negotiate
    Payment Terms : T/T
    Supply Ability : 500pieces/Month
    Delivery Time : 5-8 Work Days
    • Product Details
    • Company Profile

    Industrial Air Spring Single Convoluted Air Bags W01-358-7094 W013587094

    Industrial Air Spring single convoluted air bags W01-358-7094 W013587094


    Cross references
    Firestone No.
    W01-358-7094
    W01 358 7094
    W013587094
    Firestone Style
    113-1 1131 113 1
    FleetPride
    AS7094
    Taurus
    6326
    Triangle
    AS-4538 AS4538
    AS 4538
    TRP
    AS70940

    Technical Details

    Compressed Height: 80mm

    Top Cover Plate Diameter: 289mm

    Bottom Cover Plate Diameter: 289mm

    Distance Gas Hole Between Nut 79 mm

    Top Cover Plate Screw (Nut) Tooth :4pcX3/8-16UNC

    Bottom Cover Plate Screw (Nut) Tooth : 4pcX3/8-16UNC

    The Working Stroke : MAX 140 mm to MIN 68 mm

    Gas Hole / Air inlet : 3/4NPTF


    What is the purpose of an air spring?


    An air spring could be defined as a reservoir of air made of rubber and fabric, which is shaped with bellows and that can be used to support load, isolate vibrations and shocks, or act as a pneumatic cylinder by expanding itself.


    About Yiconton


    We are the biggest manufacturer of air suspensions parts in China. Our products have been imported worldwide. We can provide you with quality products and good service.


    Product picture

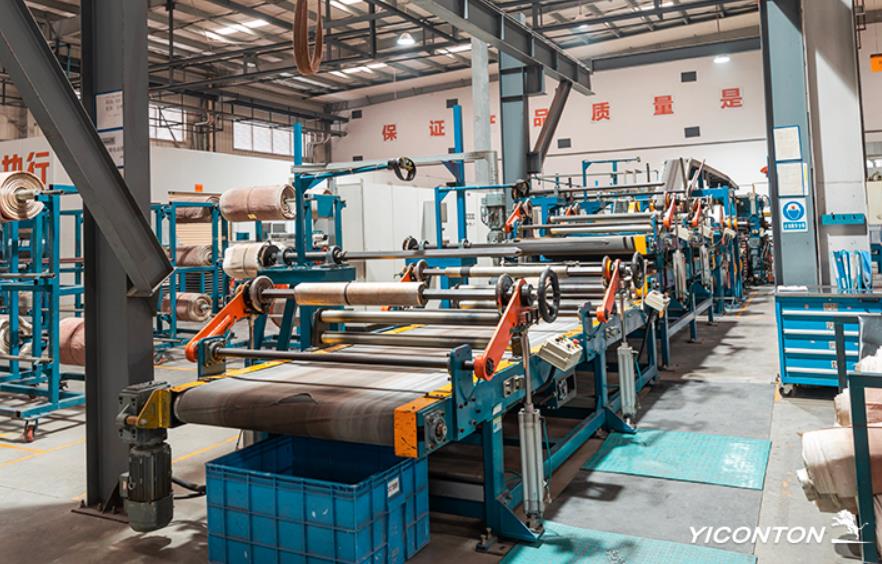

    Factory picture
