Brand Name : | Yiconton |
Model Number : | 2B 5330 |
Certification : | IATF16949 |
Price : | Negotiate |
Payment Terms : | T/T |
Supply Ability : | 500pieces/Month |
Delivery Time : | 5-8 Work Days |
Double Convoluted Air Spring Firestone W01-358-7180 Contitech FD330-22363
Nut/Blind Nut | |
Top Cover Plate Screw (Nut) Tooth | 2X3/8 -16UNC |
Screw Center Distance of Top Cover Plate | 157mm |
Screw and Air Inlet Distance of Top Cover Plate | 73mm |
Bottom Cover Plate Screw (Nut) Tooth | 2X3/8-16UNC |
Screw Center Distance of Bottom Cover Plate | 157mm |
Gas Hole / Air inlet / Air Fitting | |
Gas Hole / Air inlet | 1/4NPTF |
Cover Plate | |
Top Cover Plate Diameter | 231mm |
Bottom Cover Plate Diameter | 231mm |
Rubber Bellow | |
Rubber Bellows MAX Diameter | 325mm |
The Working Stroke | MAX 305mm to MIN 81 mm |
Maximum Height | 305mm |
Minimum Height | 81mm |
Compression Height | 224mm |
Note for double convoluted air spring
Firestone double convoluted air springs DO NOT require a bumpstop
to avoid damage, however, your specific application MAY require a
bumpstop to maintain a safe ground clearance when deflated.
Advantages of our products
1. Excellent crafting materials
2. Effectively reduce shock
3. Easy on-site installation
4. Comfortable and stable
5. Long service life
6. Solve abnormal noise
7. Factory price, reasonable and competitive

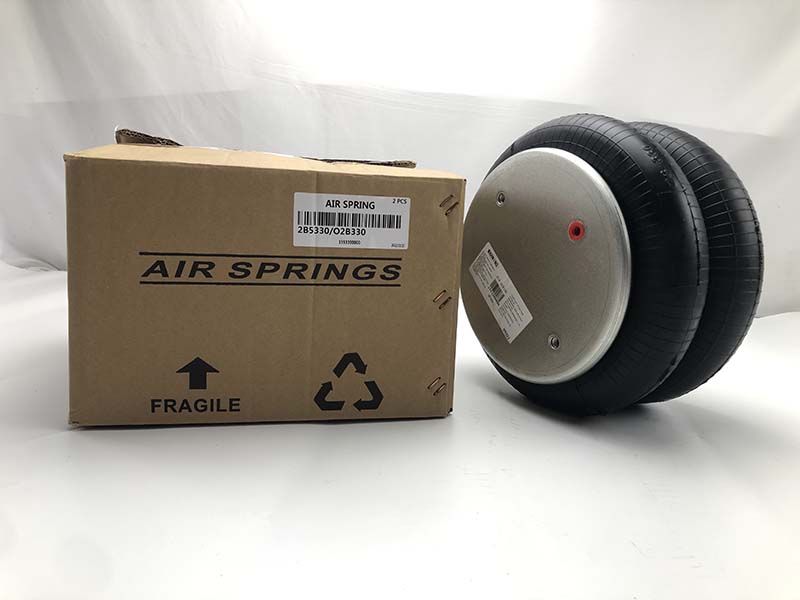

Product picture
![]() |
